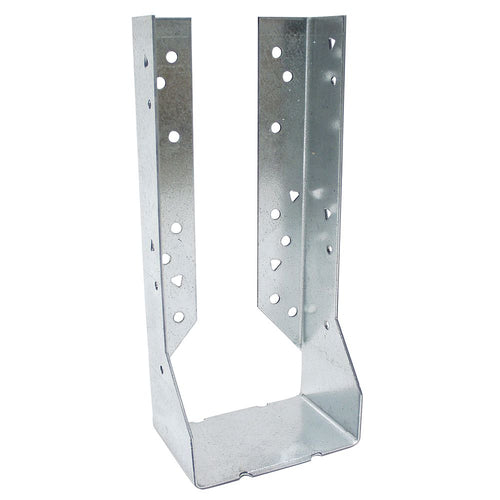

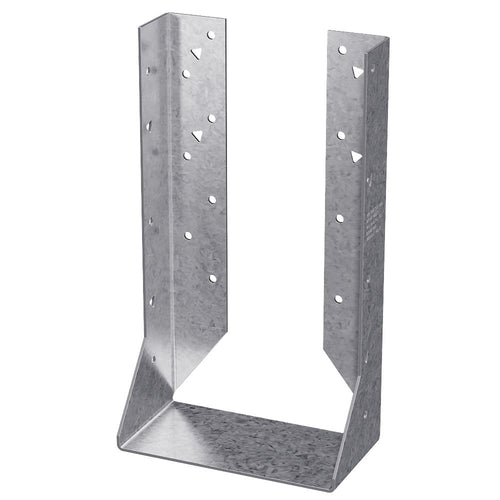

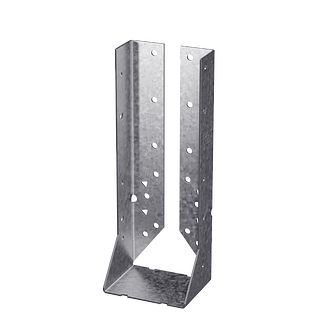

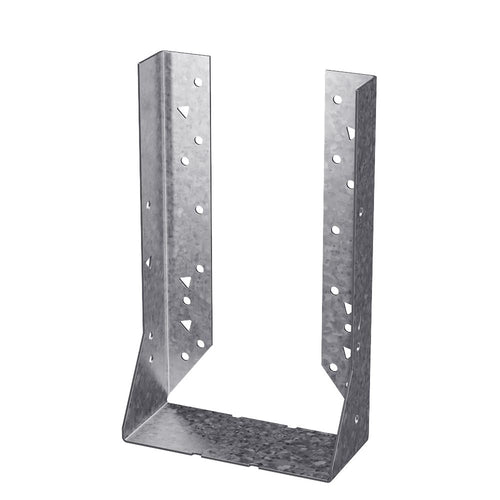

Simpson Strong-Tie HUC Heavy Concealed-Flange Face-Mount Joist Hanger

Simpson Strong-Tie HUC Heavy Concealed-Flange Face-Mount Joist Hanger

Simpson Strong-Tie Company

Options

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

Key Features

Extra optional triangle holes for additional load
HUC-series hangers are tested, load rated and code compliant

Material

14 ga. (68 mil)

Finish

Galvanized

Installation

Use all specified fasteners; see General Notes.
Can be installed filling round holes only, or filling round and triangle holes for maximum values.
Joists sloped up to 1/4:12 achieve table loads.
For installations to masonry or concrete, see HUC in Masonry Hangers.
Can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity — refer to technical bulletin HU/HUC Welded onto Steel Members (T-C-HUHUC-W).
When nailing into solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67.
